Subaru Crosstrek Owners Manual: Specifications

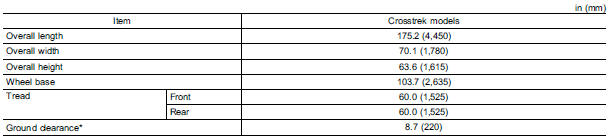

Dimensions
These specifications are subject to change without notice.
*: Measured with vehicle empty

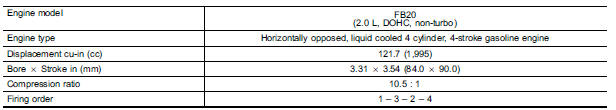

Engine
Fuel
For more details, refer to "Fuel" F7-3.
