Subaru Crosstrek Owners Manual: Vehicle identification

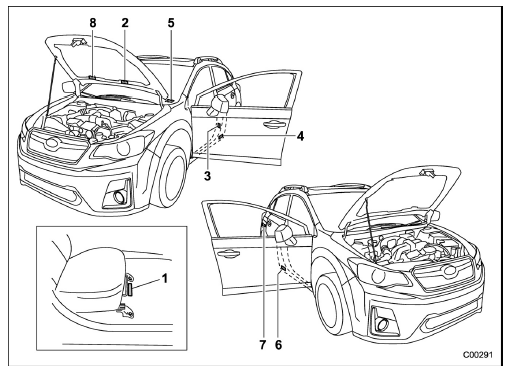

1) Vehicle identification number (under the floor carpet of the right-hand front seat)
2) Emission control label
3) Tire inflation pressure label
4) Certification label
5) Vehicle identification number plate
6) Model number label
7) Fuel label
8) Air conditioner label
