Subaru Ascent 2018-2026 Owner's Manual: Roof tent

WARNING

Installing a roof tent on the Subaru Ascent increases the overall weight positioned above the vehicle’s center of gravity, which can negatively influence handling, braking efficiency, and rollover resistance. Under no circumstances should the Subaru Ascent be driven if the total load on the roof rails exceeds 176 lbs (80 kg).

CAUTION

• The higher stationary load capacity of 700 lbs (317 kg) applies only when the Subaru Ascent is parked on level ground, the load is evenly distributed across the roof (left to right and front to rear), and both the roof crossbars and roof tent are securely fastened. If any of these conditions are not met, the permissible load must be reduced accordingly.
• The maximum load rating of the roof crossbars should always be verified with the manufacturer or retailer. When driving the Subaru Ascent, the effective roof load must not exceed 176 lbs (80 kg) or the crossbar rating—whichever is lower.

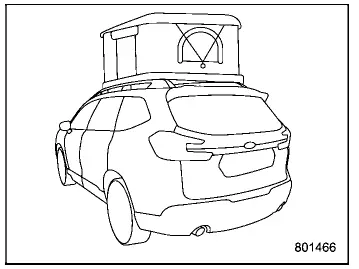

Using a roof tent on the Subaru Ascent is possible only under specific conditions and always at the owner's responsibility. Proper installation and strict adherence to load limits are essential for safe operation.

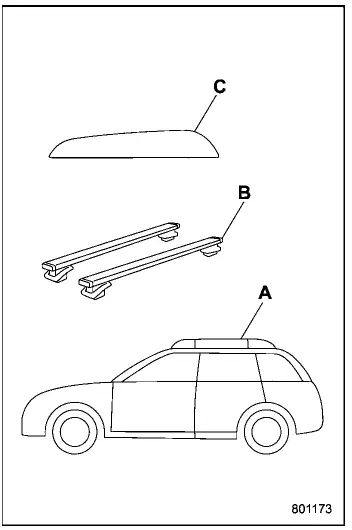

When driving the vehicle

The combined weight of all roof-mounted components—including roof crossbars and the roof tent—must remain below 176 lbs (80 kg) and be evenly distributed across the roof rails of the Subaru Ascent.

1. Roof rails
2. Roof crossbars
3. Roof tent

    B + C < 176 lbs (80 kg)

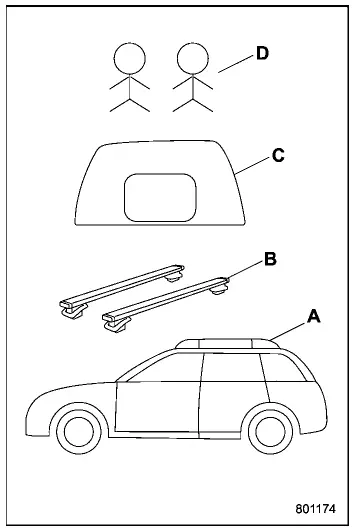

When the vehicle is parked on level ground

1. Roof rails
2. Roof crossbars
3. Roof tent
4. Occupants in the roof tent

When the Subaru Ascent is stationary, the total load applied to the roof rails—including the roof tent, crossbars, occupants, and any additional items—must not exceed 700 lbs (317 kg), evenly distributed, or the load rating of the roof crossbars if it is lower.

Load limit of the roof rail (A).

  B + C + D < 700 lbs (317 kg)

Exceeding these specified limits may result in structural damage to the Subaru Ascent or failure of the roof mounting system.

The Subaru Ascent must never be driven while occupants remain inside the roof tent. Before driving, ensure that all passengers exit the tent, all cargo is removed, and the total roof load is reduced to within the safe driving limit of 176 lbs (80 kg).

Always consult the roof tent manufacturer’s manual for detailed installation procedures, safety recommendations, and proper usage guidelines to ensure compatibility with the Subaru Ascent.

Additional note: When properly installed and used within specified limits, a roof tent can enhance the versatility of the Subaru Ascent for outdoor travel. However, careful weight management and cautious driving are essential to maintain vehicle stability, safety, and long-term durability.
