Subaru Crosstrek Service Manual: Removal

Subaru Crosstrek Service Manual / Vehicle dynamics control (vdc) / Vdc off switch / Removal

VEHICLE DYNAMICS CONTROL (VDC) > VDC OFF Switch

REMOVAL

1. Disconnect the ground cable from battery. NOTE">

2. Remove the cover assembly - instrument panel LWR driver OUT. Instrument Panel Lower Cover > REMOVAL">

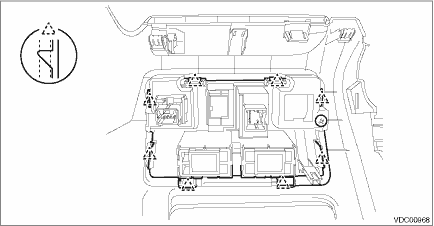

3. Remove the screws and release the claws, then detach the cover.

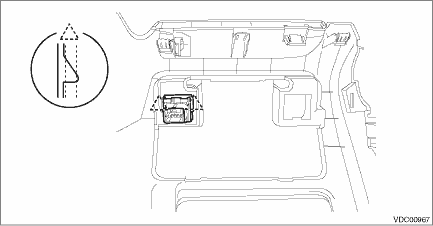

4. Release the claws and remove the VDC OFF switch.

Inspection

VEHICLE DYNAMICS CONTROL (VDC) > VDC OFF SwitchINSPECTION1. Disconnect the VDC OFF switch connector.2. Check the resistance between the VDC OFF switch terminals.PREPARATION TOOL:Circuit testerTermi ...

Installation

VEHICLE DYNAMICS CONTROL (VDC) > VDC OFF SwitchINSTALLATIONInstall each part in the reverse order of removal. ...
