VEHICLE DYNAMICS CONTROL (VDC) > VDC OFF Switch
INSPECTION
1. Disconnect the VDC OFF switch connector.

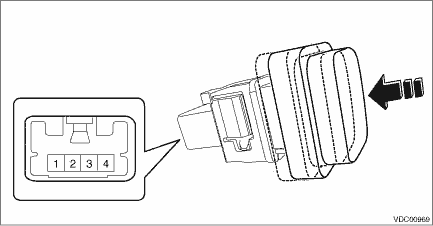

2. Check the resistance between the VDC OFF switch terminals.
PREPARATION TOOL:
Circuit tester
Terminal No. | Inspection conditions | Standard |
2 — 3 | Switch OFF | 1 M? or more |
Switch ON | Less than 1 ? |
3. Replace the VDC OFF switch if the inspection result is not within the standard value.
Vdc off switch
...
Removal
VEHICLE DYNAMICS CONTROL (VDC) > VDC OFF SwitchREMOVAL1. Disconnect the ground cable from battery. NOTE">2. Remove the cover assembly - instrument panel LWR driver OUT. Instrument Panel L ...
