LIGHTING SYSTEM > Rear Height Sensor

REMOVAL

CAUTION:

Always remove the sensor assembly - headlight beam leveler before removing any parts related to the suspension.

1. Disconnect the ground cable from battery. NOTE">

2. Lift up the vehicle, and remove the left rear wheel.

3. Remove the sensor assembly - headlight beam leveler.

CAUTION:

Do not disassemble the sensor and lever.

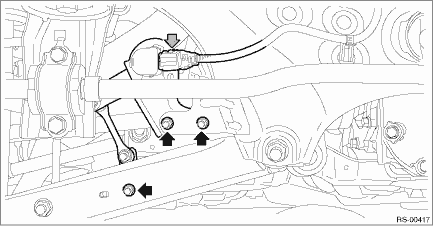

(1) Disconnect the connector.

(2) Remove the nuts, and remove the sensor assembly - headlight beam leveler.

Inspection
LIGHTING SYSTEM > Rear Height SensorINSPECTION1. Connect three dry cell batteries (1.5 V) in series.NOTE:• Use new dry-cell batteries.• Using a circuit tester, check that the initial vo ...

Installation
LIGHTING SYSTEM > Rear Height SensorINSTALLATION1. Install each part in the reverse order of removal.Tightening torque:Sensor assembly - headlight beam leveler: 7.5 N·m (0.76 kgf-m, 5.5 ft-l ...
