Subaru Crosstrek Service Manual: Removal
GLASS/WINDOWS/MIRRORS > Rear Regulator and Motor Assembly
REMOVAL
1. Disconnect the ground cable from battery. NOTE">
2. Remove the trim panel - rear door. Door Trim > REMOVAL">
3. Remove the sealing cover - rear door. Rear Sealing Cover > REMOVAL">
4. Remove the glass assembly - rear door. Rear Door Glass > REMOVAL">
5. Remove the rear regulator and motor assembly.

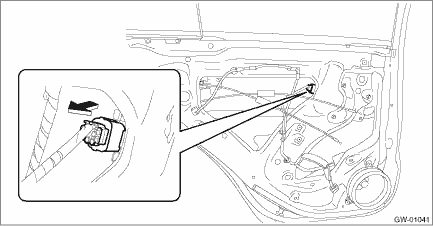

(1) Disconnect the motor - rear connector.

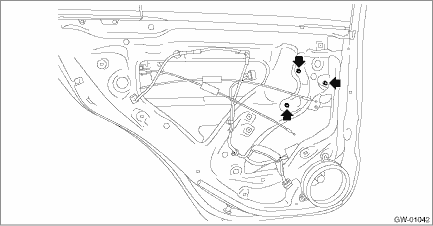

(2) Remove the bolts, and then remove the rear regulator and motor assembly.
Inspection
GLASS/WINDOWS/MIRRORS > Rear Regulator and Motor AssemblyINSPECTION1. Disconnect the connector of the motor - rear.2. Check the motor operation when battery voltage is applied between terminals of ...
Installation
GLASS/WINDOWS/MIRRORS > Rear Regulator and Motor AssemblyINSTALLATIONInstall each part in the reverse order of removal.Tightening torque:Refer to “COMPONENT” of “General Descripti ...
