Subaru Ascent 2018-2026 Owner's Manual: Disabling keyless access function

WARNING

If you use an implanted pacemaker or defibrillator, it is strongly recommended to disable the Subaru Ascent keyless access function by following the procedure described in the section "By operating the driver's door". Avoid disabling the system via the access key fob, as radio waves emitted by the Subaru Ascent transmitter antennas may interfere with the proper operation of medical devices.

When the Subaru Ascent will not be used for an extended period, or if you prefer to manually control access, the keyless access system can be safely disabled to conserve battery life and enhance control over vehicle access.

NOTE

Disabling functions

By operating the access key fob

To disable the Subaru Ascent keyless access function using the access key fob, you must first register a PIN code for the PIN Code Access system. For detailed instructions, refer to the section "Unlock using PIN Code Access".

1. Open the driver's door.

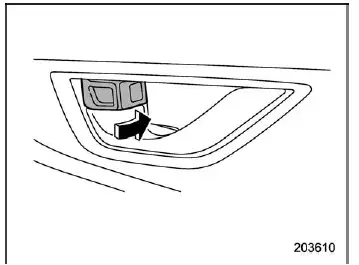

Subaru Ascent driver door open position for disabling keyless access system

2. Rotate the lock lever forward.

Subaru Ascent door lock lever forward position for system setup

3. Press and hold the " Subaru Ascent lock button icon" button and " Subaru Ascent unlock button icon" button on the access key fob simultaneously for more than 5 seconds.

A confirmation chirp will sound, indicating that the Subaru Ascent keyless access function has been successfully disabled.

By operating the driver's door

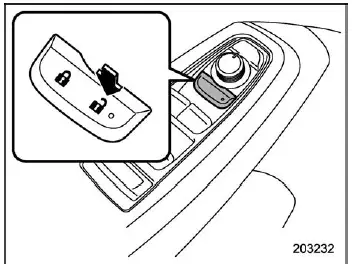

Subaru Ascent door control method for disabling keyless access system

Alternatively, the Subaru Ascent keyless access function can be disabled directly using the driver's door controls by following the specified sequence of actions.

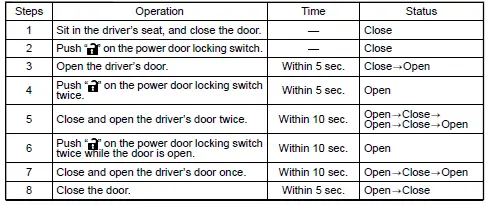

Subaru Ascent step by step disabling keyless access using door switches

Once completed correctly, an audible chirp will confirm that the Subaru Ascent system has been deactivated.

NOTE

During steps 4 and 6, ensure the power door lock switch is pressed firmly. Incomplete or weak input may prevent the Subaru Ascent system from disabling correctly.

Enabling functions

To reactivate the Subaru Ascent keyless access function, repeat the same procedure used to disable it. A confirmation chirp will indicate that the system is enabled again.

NOTE

Power saving function
The Subaru Ascent includes an intelligent power-saving feature designed to protect both the vehicle battery and the access key fob battery by automatically disabling the keyless access system unde ...

Selecting audible signal operation
The Subaru Ascent provides audible confirmation (electronic chirps) when locking or unlocking the vehicle. This feature can be customized or disabled through the center information display accordi ...
