Subaru Crosstrek Service Manual: Installation

FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Fuel Injector

INSTALLATION

Install in the reverse order of removal.

NOTE:

Use new fuel injector holder, O-rings, rubbers and seal rings.

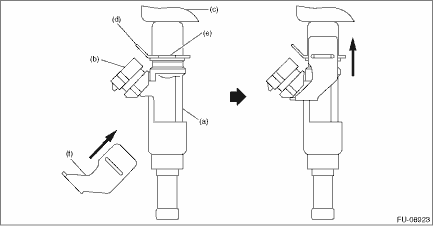

Install the fuel injector so that the connector joint faces the connector rotation stopper side of the fuel pipe.

Securely put the flange section of fuel pipe into the groove of fuel injector holder.

(a)

Fuel injector

(b)

Connector joint

(c)

Fuel pipe

(d)

Connector rotation stopper

(e)

Flange section

(f)

Fuel injector holder

Tightening torque:

6.4 N·m (0.7 kgf-m, 4.7 ft-lb)
