Subaru Crosstrek Service Manual: Combination meter system Wiring diagram

Subaru Crosstrek Service Manual / Wiring system / Combination meter system Wiring diagram

WIRING SYSTEM > Combination Meter System

WIRING DIAGRAM

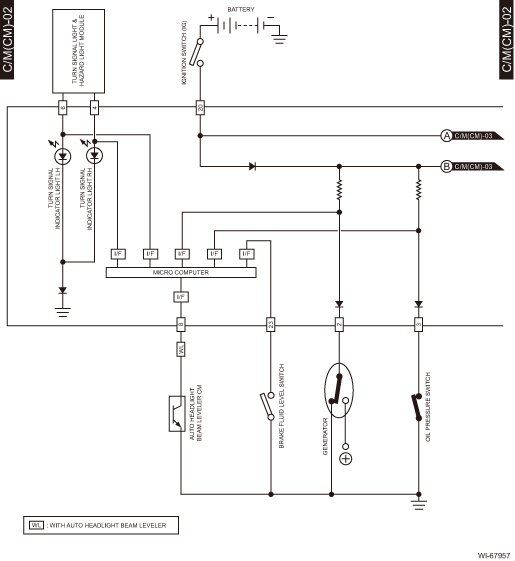

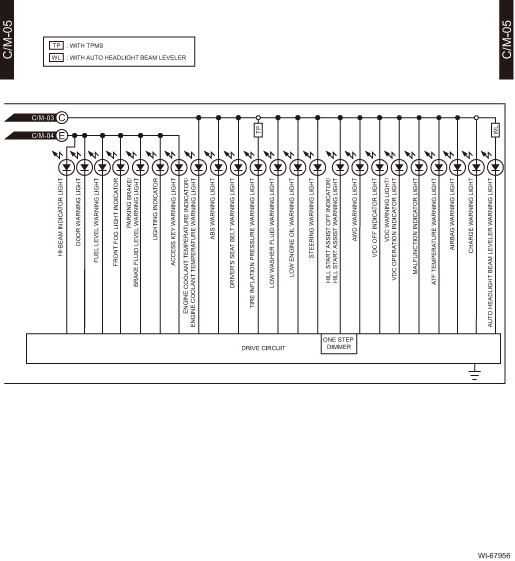

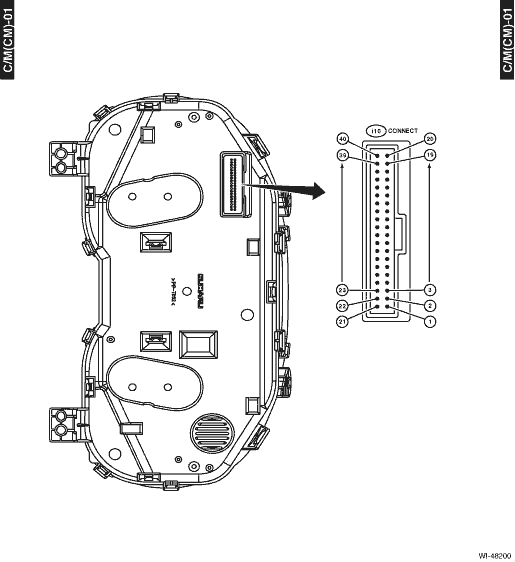

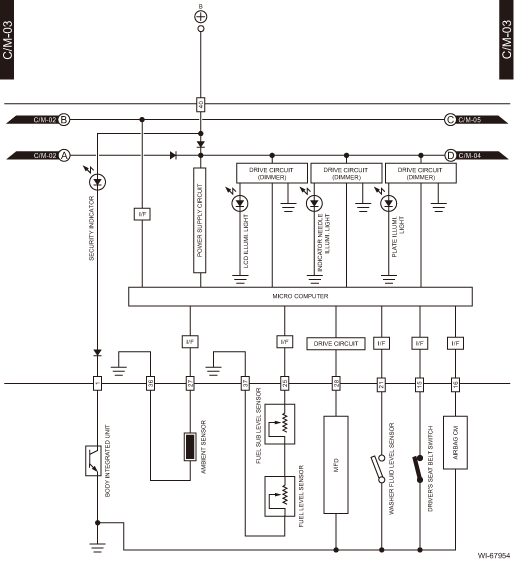

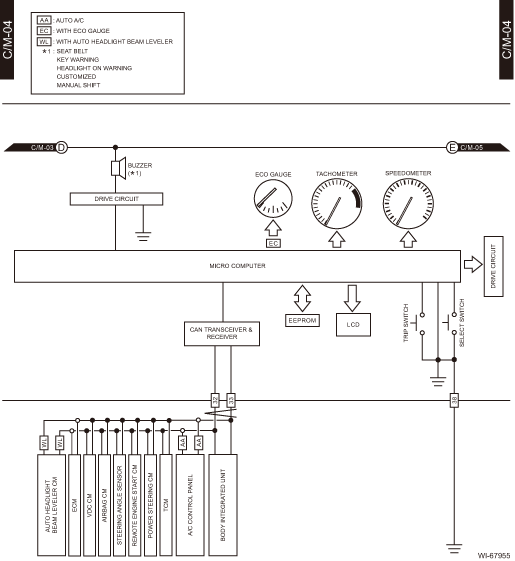

1. MODEL WITH NORMAL METER

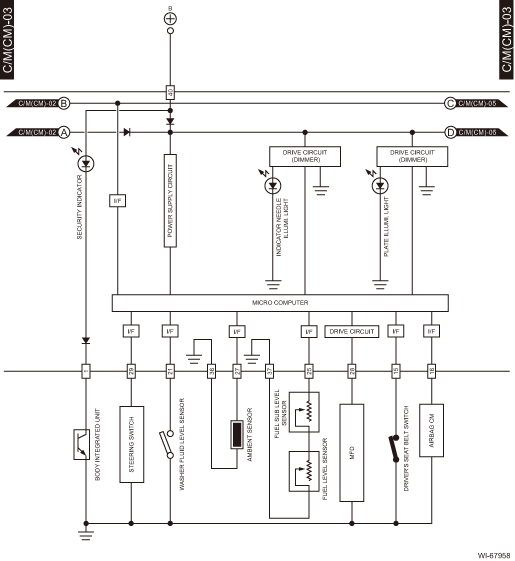

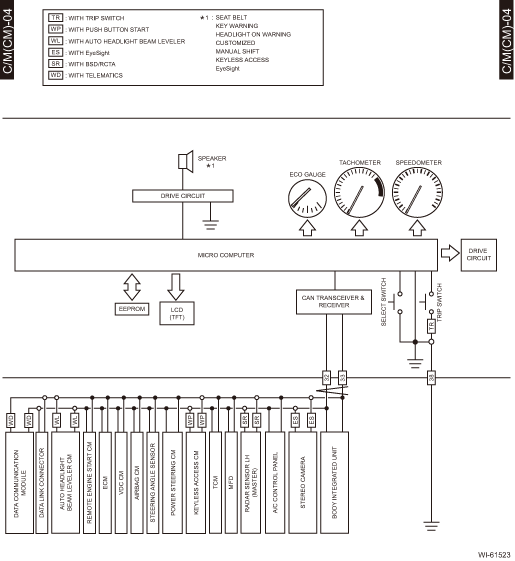

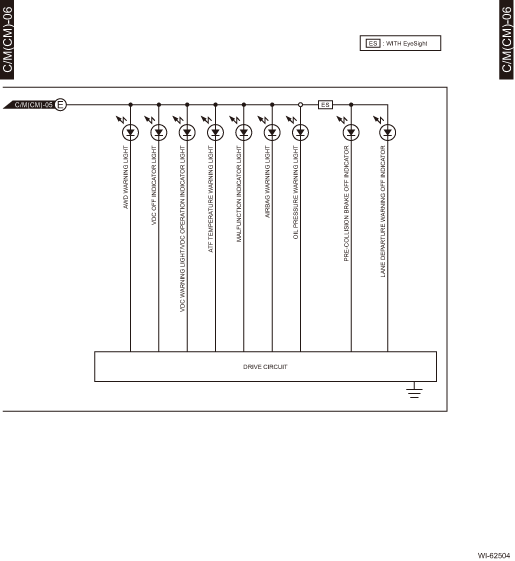

2. MODEL WITH COLOR TFT METER

Clearance light and illumination light system Wiring diagram
WIRING SYSTEM > Clearance Light and Illumination Light SystemWIRING DIAGRAM ...

Coolant temperature system Wiring diagram
WIRING SYSTEM > Coolant Temperature SystemWIRING DIAGRAM ...
