WIRING SYSTEM > Clearance Light and Illumination Light System

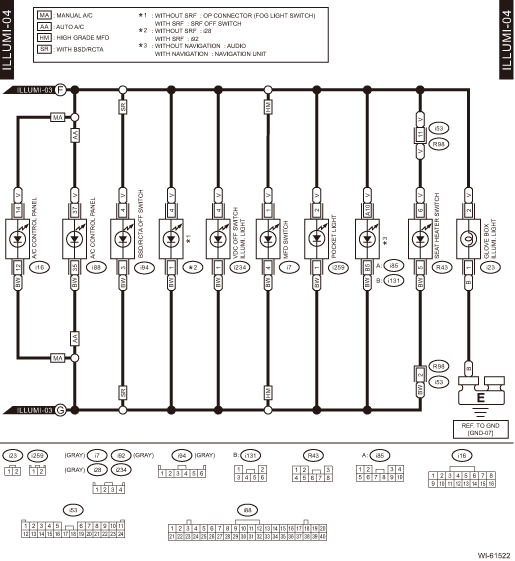

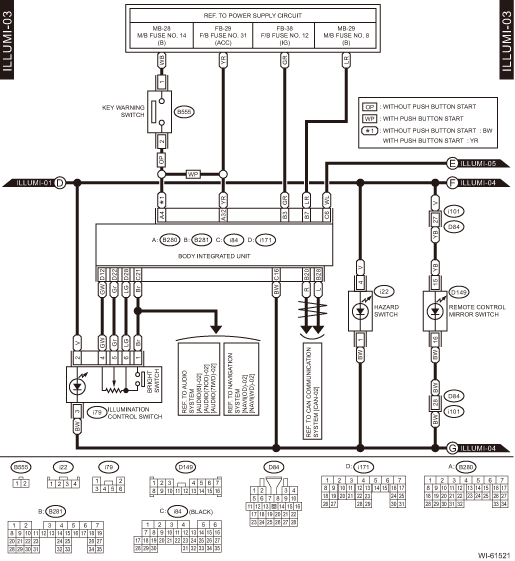

WIRING DIAGRAM

Charging system Wiring diagram
WIRING SYSTEM > Charging SystemWIRING DIAGRAM ...

Combination meter system Wiring diagram
WIRING SYSTEM > Combination Meter SystemWIRING DIAGRAM1. MODEL WITH NORMAL METER2. MODEL WITH COLOR TFT METER ...
