Subaru Ascent 2018-2026 Owner's Manual: Towing
If towing your Subaru Ascent becomes necessary, it is strongly recommended to rely on an authorized SUBARU dealer or a professional towing service. Always follow the correct procedures to ensure safety and prevent drivetrain damage.
WARNING

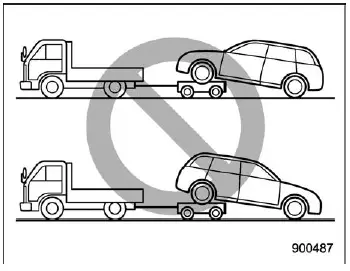

Never tow AWD versions of the Subaru Ascent with only the front wheels or only the rear wheels lifted off the ground. Doing so may cause uncontrolled wheel rotation and severe damage to the center differential, potentially resulting in loss of control.
Engine overheating
WARNING
Never remove the radiator cap of your Subaru Ascent until the engine has been
completely switched off and allowed to cool down fully. When the engine is hot,
the cooling system remains un ...
Towing hooks and tie-down hooks/holes
The towing hooks on the Subaru Ascent are intended strictly for emergency use
and should not be used for prolonged or improper towing operations.
CAUTION
Always use only the designated towing hook ...
