Subaru Crosstrek Service Manual: Removal
LIGHTING SYSTEM > License Plate Light
REMOVAL
1. Disconnect the ground cable from battery. NOTE">

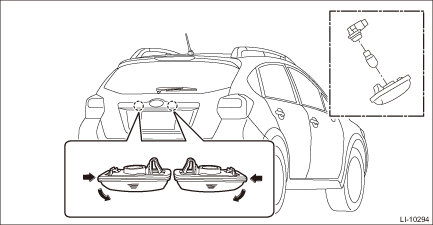

2. Remove the license plate light.
(1) Release the claws and pull out the license plate light.
(2) Disconnect the connector and remove the bulb socket and bulb from the license plate light.
CAUTION:
Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.
Inspection
LIGHTING SYSTEM > License Plate LightINSPECTION1. Visually check the bulb for blow out.2. Check the bulb specification. General Description > SPECIFICATION">3. Replace the bulb if it is ...
Installation
LIGHTING SYSTEM > License Plate LightINSTALLATIONInstall each part in the reverse order of removal. ...
