Subaru Crosstrek Service Manual: Removal

STARTING/CHARGING SYSTEMS(H4DO) > Generator

REMOVAL

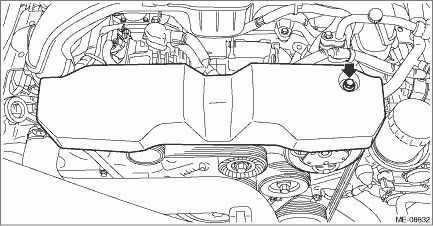

1. Remove the V-belt covers.

2. Disconnect the ground cable from battery. NOTE">

3. Remove the V-belts. V-belt > REMOVAL">

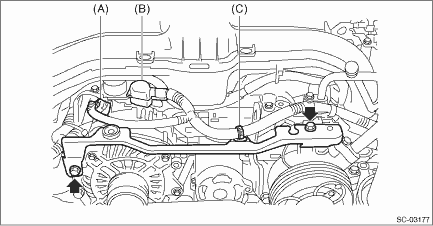

4. Disconnect the connector (A) and terminal (B) from the generator, and remove the clip (C).

5. Remove the V-belt cover bracket.

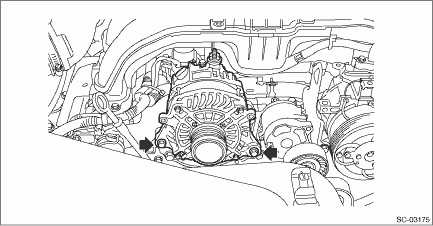

6. Remove the generator from the generator bracket.

7. Remove the V-belt tensioner assembly. V-belt > REMOVAL">

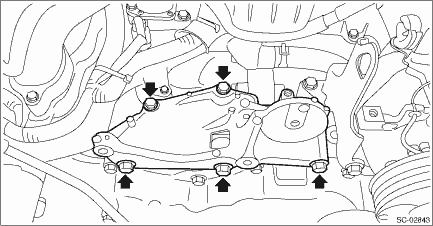

8. Remove the generator bracket from the engine.

Assembly
STARTING/CHARGING SYSTEMS(H4DO) > GeneratorASSEMBLYAssemble in the reverse order of disassembly.NOTE:• Refer to component for tightening torque of each part. General Description > COMPONE ...

Disassembly
STARTING/CHARGING SYSTEMS(H4DO) > GeneratorDISASSEMBLY1. Remove the cap from the generator.2. Remove four bolts.3. Use a drier to heat the rear cover (A) portion to 50 — 60°C (122 — ...
