Subaru Crosstrek Service Manual: Removal

SECURITY AND LOCKS > Starter Cut Relay

REMOVAL

CAUTION:

Before handling the airbag system components, refer to “CAUTION” of “General Description” in “AIRBAG SYSTEM”. General Description > CAUTION">

1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. NOTE">

2. Remove the cover assembly - instrument panel LWR driver. Instrument Panel Lower Cover > REMOVAL">

3. Remove the knee airbag module. Knee Airbag Module > REMOVAL">

4. Release the lock and remove the fuse holder.

5. Remove the relay & fuse box.

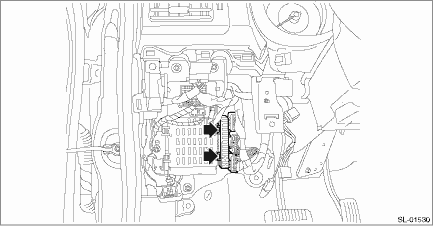

(1) Disconnect the connector.

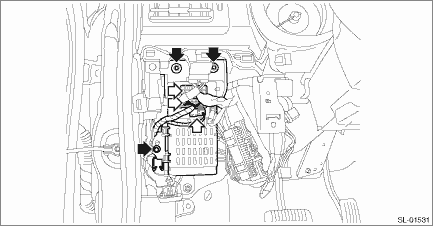

(2) Remove the bolts and nuts, and remove the relay & fuse box.

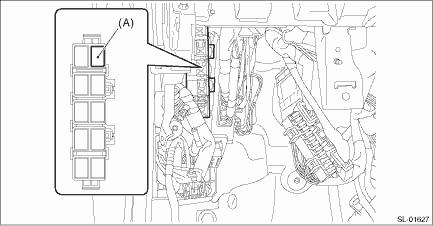

6. Remove the starter cut relay (A) from the relay holder.

Inspection
SECURITY AND LOCKS > Starter Cut RelayINSPECTIONRefer to “CHECK RELAY” in “Relay and Fuse”. Relay and Fuse > INSPECTION"> ...

Installation
SECURITY AND LOCKS > Starter Cut RelayINSTALLATIONCAUTION:Before handling the airbag system components, refer to “CAUTION” of “General Description” in “AIRBAG SYSTEM&r ...
