Subaru Crosstrek Service Manual: Assembly
MECHANICAL(H4DO) > Chain Cover
ASSEMBLY
1. Install the camshaft position sensor. Camshaft Position Sensor > INSTALLATION">
2. Install the oil control solenoid. Oil Control Solenoid > INSTALLATION">
3. Install the engine oil temperature sensor. Engine Oil Temperature Sensor > INSTALLATION">
4. Install the oil pressure switch. Oil Pressure Switch > INSTALLATION">
5. Install the engine oil filter and the oil pump union. Engine Oil Filter > INSTALLATION">

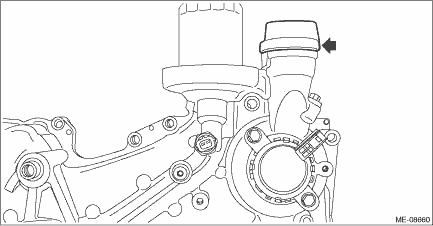

6. Install the oil filler cap.
Chain cover
...
Removal
MECHANICAL(H4DO) > Chain CoverREMOVALNOTE:When replacing a single part, perform the work with the engine assembly installed to body.1. When working on the vehicleNOTE:When working on the vehicle, p ...
