Subaru Crosstrek Service Manual: Removal

Subaru Crosstrek Service Manual / Security and locks / Security control module / Removal

SECURITY AND LOCKS > Security Control Module

REMOVAL

CAUTION:

• Before handling the airbag system components, refer to “CAUTION” of “General Description” in “AIRBAG SYSTEM”. General Description > CAUTION">

• Do not allow harness and connectors to interfere or get tangled up with other parts.

• If the steering wheel and steering angle sensor (steering roll connector) are removed, perform “VSC(VDC) Centering Mode” of the VDC. VDC Control Module and Hydraulic Control Unit (VDCCM&H/U) > ADJUSTMENT">

1. Remove the steering wheel. Steering Wheel > REMOVAL">

2. Remove the instrument panel assembly. Instrument Panel Assembly > REMOVAL">

3. Remove the heater and cooling unit assembly. Heater and Cooling Unit > REMOVAL">

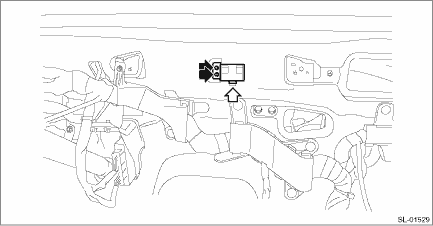

4. Remove the security control module.

(1) Disconnect the connector.

(2) Remove the nuts, and remove the security control module.
