Subaru Crosstrek Service Manual: Removal
SECURITY AND LOCKS > Rear Inner Remote
REMOVAL
1. Disconnect the ground cable from battery. NOTE">
2. Remove the trim panel - rear door. Door Trim > REMOVAL">

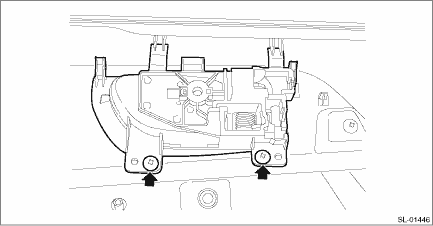

3. Remove the screw, and remove the remote assembly - door.
Inspection
SECURITY AND LOCKS > Rear Inner RemoteINSPECTIONCheck if the remote handle operates normally.• If the lever is faulty, replace the remote handle.• If the cable is deformed, replace the ...
Installation
SECURITY AND LOCKS > Rear Inner RemoteINSTALLATION1. Before installation, check the following items.• Cable is free from deformation such as fray.• Grease is applied sufficiently to cab ...
