Subaru Crosstrek Service Manual: Removal
SECURITY AND LOCKS > Front Hood Lock Assembly
REMOVAL
1. Open the front hood.

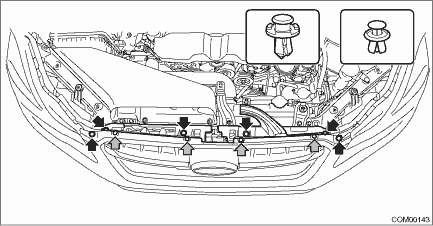

2. Remove the clip, and remove the bracket - grille.
NOTE:
To prevent damage to the bracket - grille, make sure to remove all clips.

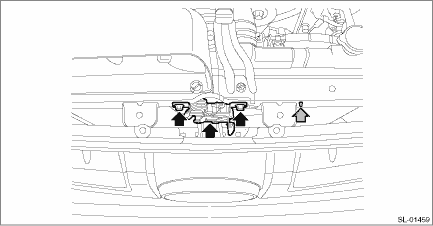

3. Remove the lock assembly - front hood.
(1) Remove the bolt and clip.

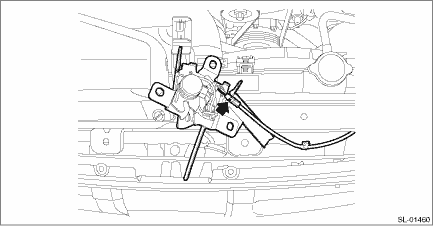

(2) Disconnect the release cable, and detach the lock assembly - front hood.
NOTE:
When disconnecting the release cable, refer to “FRONT HOOD OPENER” of “Remote Openers”. Remote Openers > REMOVAL">
Adjustment
SECURITY AND LOCKS > Front Hood Lock AssemblyADJUSTMENT1. Loosen the bolt, and adjust the lock assembly - front hood while moving it up and down.2. After adjustment, tighten the bolts securely.Tigh ...
Inspection
SECURITY AND LOCKS > Front Hood Lock AssemblyINSPECTIONCheck if the lock assembly operates normally.If lever deformation, abnormal wear, or unsmooth lock operation is observed, replace the lock ass ...
