SECURITY AND LOCKS > Front Hood Lock Assembly

ADJUSTMENT

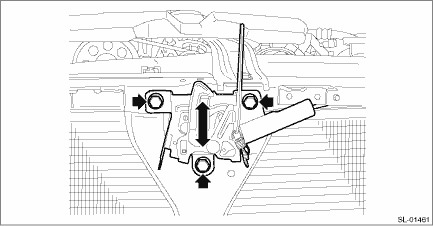

1. Loosen the bolt, and adjust the lock assembly - front hood while moving it up and down.

2. After adjustment, tighten the bolts securely.

Tightening torque:

Refer to “COMPONENT” of “General Description”. General Description > COMPONENT">
