Subaru Crosstrek Service Manual: Removal
LIGHTING SYSTEM > Front Fog Light Bulb
REMOVAL
1. Disconnect the ground cable from battery. NOTE">

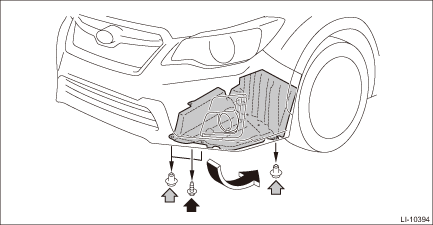

2. Remove the screw and clips, and turn over the front side of the mud guard - front.

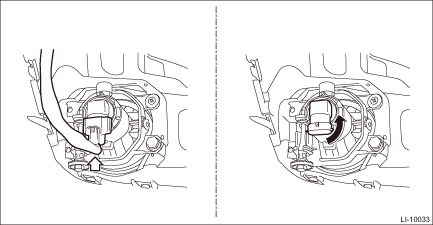

3. From the bottom of the bumper face - front, remove the front fog light bulb.
CAUTION:
Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.

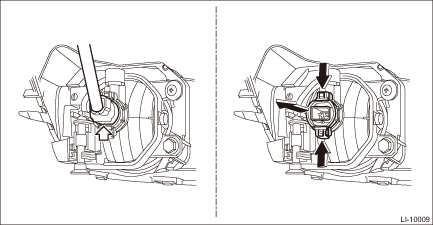

(1) Disconnect the connector.
(2) Remove the bulb.
• Model without SRF
• Model with SRF
Inspection
LIGHTING SYSTEM > Front Fog Light BulbINSPECTION1. Visually check the bulb for blow out.2. Check the bulb specification. General Description > SPECIFICATION">3. Replace the bulb if it i ...
Installation
LIGHTING SYSTEM > Front Fog Light BulbINSTALLATIONCAUTION:• After connecting the connector, make sure that the bulb is locked securely.• Install the mud guard - front so that the front ...
