Subaru Crosstrek Service Manual: Installation
LIGHTING SYSTEM > Front Fog Light Bulb
INSTALLATION
CAUTION:
• After connecting the connector, make sure that the bulb is locked securely.

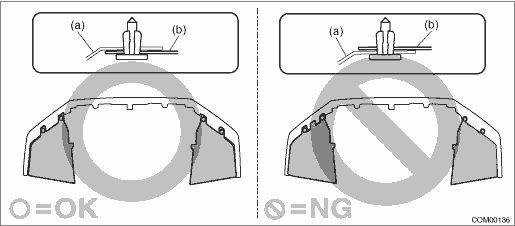

• Install the mud guard - front so that the front end of the mud guard (b) comes outside the bumper face - front (a).
Install each part in the reverse order of removal.
Removal
LIGHTING SYSTEM > Front Fog Light BulbREMOVAL1. Disconnect the ground cable from battery. NOTE">2. Remove the screw and clips, and turn over the front side of the mud guard - front.3. From ...
