Subaru Crosstrek Service Manual: Removal

LIGHTING SYSTEM > Day Time Running Resistor

REMOVAL

1. Disconnect the ground cable from battery. NOTE">

2. Lift up the vehicle.

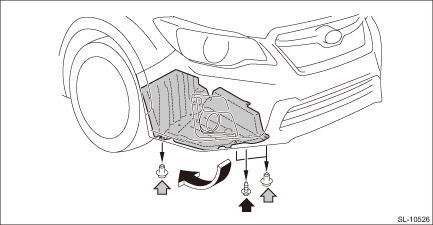

3. Remove the screw and clips, and turn over the front side of the mud guard - front.

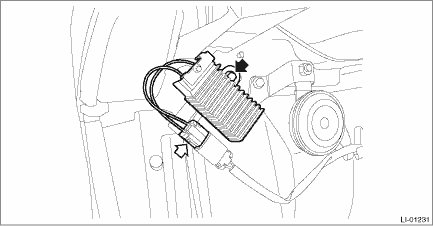

4. Remove the resistor assembly - daytime running light.

CAUTION:

The resistor may become hot. Be careful not to burn yourself when removing it.

(1) Disconnect the connector.

(2) Remove the bolts, then remove the resistor assembly - daytime running light.

Inspection
LIGHTING SYSTEM > Day Time Running ResistorINSPECTION1. Measure the resistance between connector terminals.Preparation tool:Circuit testerTerminal No.Inspection conditionsSpecificationConnection di ...

Installation
LIGHTING SYSTEM > Day Time Running ResistorINSTALLATIONInstall each part in the reverse order of removal.Tightening torque:Resistor assembly - daytime running light: 7.5 N·m (0.76 kgf-m, 5.5 ...
