Subaru Crosstrek Service Manual: Removal

Subaru Crosstrek Service Manual / Hvac system (heater, ventilator and a/c) / Ambient sensor / Removal

HVAC SYSTEM (HEATER, VENTILATOR AND A/C) > Ambient Sensor

REMOVAL

1. Disconnect the ground cable from battery. Battery > REMOVAL">

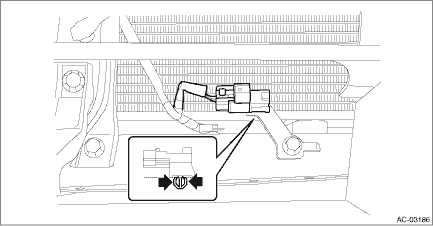

2. Remove the ambient sensor.

(1) Disconnect the connector.

(2) Release the claws, and then remove the ambient sensor from the bracket.

Inspection

HVAC SYSTEM (HEATER, VENTILATOR AND A/C) > Ambient SensorINSPECTION1. Visually check the ambient sensor for dirt or damage, and clean or replace as necessary.2. Check the resistance between ambient ...

Installation

HVAC SYSTEM (HEATER, VENTILATOR AND A/C) > Ambient SensorINSTALLATIONInstall each part in the reverse order of removal. ...
