Subaru Crosstrek Service Manual: Removal

GLASS/WINDOWS/MIRRORS > Remote Control Mirror Switch

REMOVAL

1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. NOTE">

2. Remove the trim panel - front door. Door Trim > REMOVAL">

3. Remove the panel - power window main switch. Power Window Control Switch > REMOVAL">

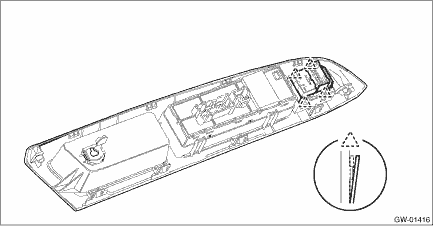

4. Release the claws, and then remove the switch - door mirror.
