Subaru Crosstrek Service Manual: Removal

Subaru Crosstrek Service Manual / Fuel injection (fuel systems)(h4do) / Tumble generator valve assembly / Removal

FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Tumble Generator Valve Assembly

REMOVAL

1. Release the fuel pressure. Fuel > PROCEDURE">

2. Disconnect the ground cable from battery.

3. Remove the intake manifold. Intake Manifold > REMOVAL">

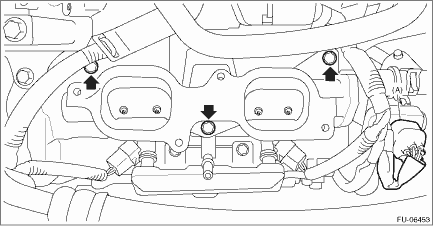

4. Disconnect the connector (A) from the tumble generator valve assembly.

5. Remove the tumble generator valve assembly from the cylinder head.

• RH side

• LH side

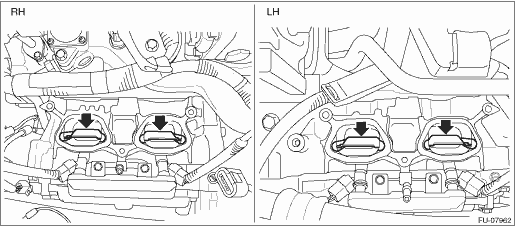

6. Remove the cylinder head plate from cylinder head.

Inspection

FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Tumble Generator Valve AssemblyINSPECTION1. CHECK MOTOR1. Connect the battery positive terminal to terminal No. 5 and the battery ground terminal to terminal N ...

Installation

FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Tumble Generator Valve AssemblyINSTALLATIONInstall in the reverse order of removal.NOTE:Use a new gasket.Tightening torque:25 N·m (2.5 kgf-m, 18.4 ft-lb ...
