FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Camshaft Position Sensor

REMOVAL

1. INTAKE SIDE

1. Disconnect the ground cable from battery.

2. Remove the air intake duct. (RH side only) Air Intake Duct > REMOVAL">

3. Disconnect the connector (A) from the camshaft position sensor, and remove the camshaft position sensor from the chain cover.

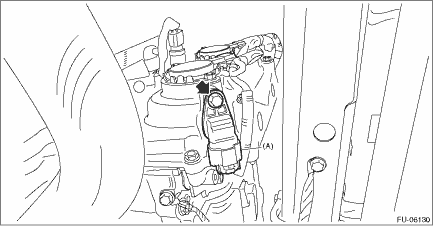

• RH side

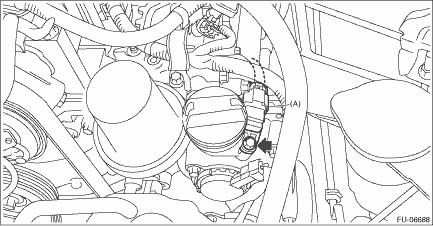

• LH side

2. EXHAUST SIDE

1. Disconnect the ground cable from battery.

2. Remove the under cover. Front Under Cover > REMOVAL">

3. Disconnect the connector (A) from the camshaft position sensor, and remove the camshaft position sensor from the chain cover.

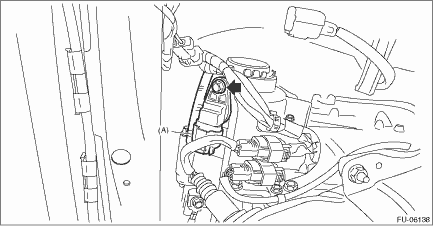

• RH side

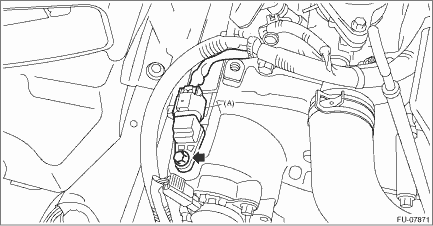

• LH side

Inspection

FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Camshaft Position SensorINSPECTION1. CAMSHAFT POSITION SENSOR (METHOD WITH OSCILLOSCOPE)1. Prepare an oscilloscope.2. Remove the glove box. Glove Box > REM ...

Installation

FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Camshaft Position SensorINSTALLATIONInstall in the reverse order of removal.NOTE:• Use new O-rings.• Apply engine oil to O-ring.Tightening torque:6 ...
