Subaru Crosstrek Service Manual: Removal
EXTERIOR/INTERIOR TRIM > Rear Gate Garnish
REMOVAL
1. Disconnect the ground cable from battery. NOTE">
2. Remove the trim panel - rear gate. Rear Gate Trim > REMOVAL">
3. Remove the arm assembly - rear wiper.

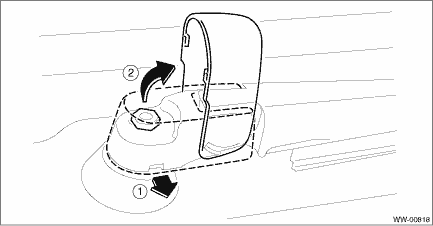

(1) Remove the cover - rear wiper arm.
(2) Remove the nut, and remove the arm assembly - rear wiper.

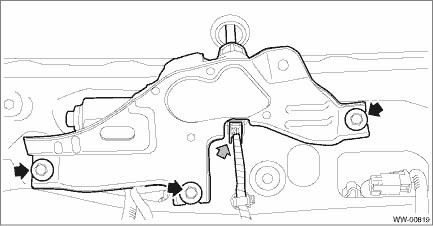

4. Remove the motor assembly - rear wiper.
(1) Disconnect the harness connector of the motor assembly - rear wiper.
(2) Remove the bolts, and remove the motor assembly - rear wiper.

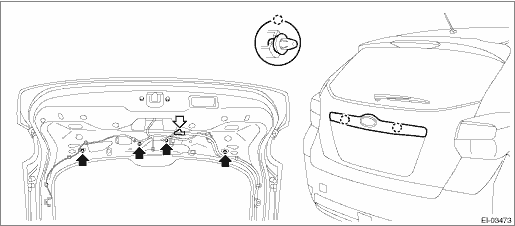

5. Remove the garnish assembly - rear gate.
(1) Disconnect the harness connector of license plate light assembly.
(2) Remove the nuts.
(3) Remove the clips and remove the garnish assembly - rear gate.
Installation
