Subaru Crosstrek Service Manual: Removal

EXTERIOR BODY PANELS > Front Fender

REMOVAL

1. Disconnect the ground cable from battery. NOTE">

2. Remove the bumper face - front. Front Bumper > REMOVAL">

3. Remove the light assembly - head. Headlight Assembly > REMOVAL">

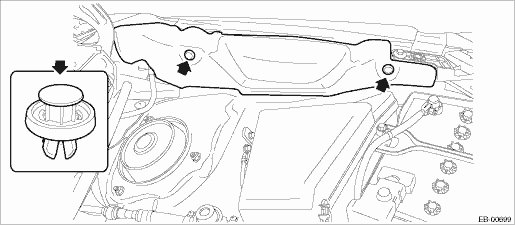

4. Remove the cover - front fender.

(1) Remove the clip.

(2) Release the claws by pulling them forward, and remove the cover - front fender.

5. Remove the clips and detach the side garnish assembly. Side Garnish > REMOVAL">

6. Remove the mud guard - front. Mud Guard > REMOVAL">

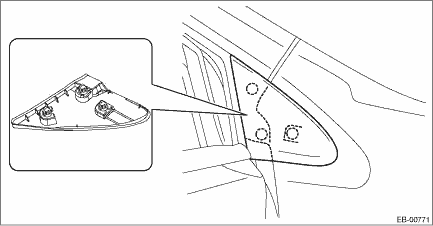

7. Remove the cover - A pillar assembly.

8. Remove the fender COMPL - front.

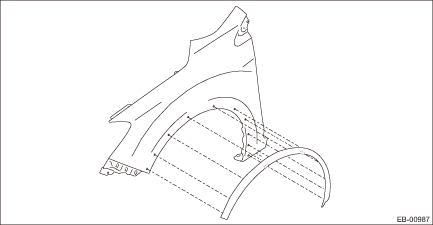

(1) Remove the garnish assembly - front fender.

CAUTION:

Do not reuse the garnish assembly - front fender. Always replace with a new part.

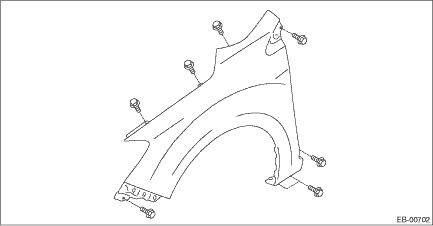

(2) Remove the bolts, and remove the fender COMPL - front.

Installation
EXTERIOR BODY PANELS > Front FenderINSTALLATION1. Install each part in the reverse order of removal.CAUTION:• Install the bumper face - front so that the front end of the under cover (b) come ...
