Subaru Crosstrek Service Manual: Removal

COOLING(H4DO) > Water Pump

REMOVAL

1. WATER PUMP PULLEY

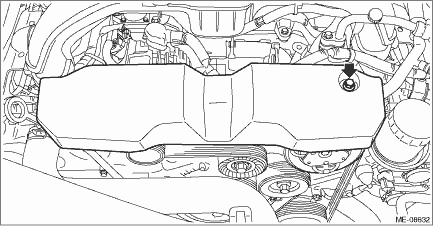

1. Disconnect the ground cable from battery. NOTE">

2. Remove the V-belt covers.

3. Remove the V-belts. V-belt > REMOVAL">

4. Remove the radiator main fan & fan motor assembly. Radiator Main Fan and Fan Motor > REMOVAL">

5. Lift up the vehicle.

6. Remove the under cover. Front Under Cover > REMOVAL">

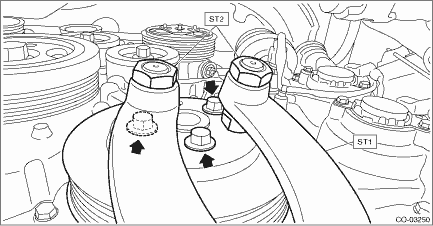

7. Remove the water pump pulley using the ST.

ST1 18355AA000PULLEY WRENCH
ST2 18334AA030PULLEY WRENCH PIN SET

2. WATER PUMP

1. Drain engine coolant. Engine Coolant > REPLACEMENT">

2. Remove the water pump pulley. Water Pump > REMOVAL">

3. Remove the front exhaust pipe. Front Exhaust Pipe > REMOVAL">

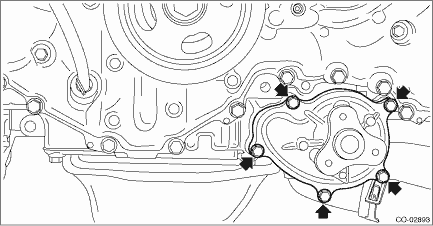

4. Remove the water pump from the oil pan upper.

Inspection
COOLING(H4DO) > Water PumpINSPECTION1. Check the water pump bearing for smooth rotation.2. Check the water pump pulley for abnormalities.3. Make sure the impeller is not abnormally deformed or dama ...

Installation
COOLING(H4DO) > Water PumpINSTALLATION1. WATER PUMP PULLEY1. Using the ST, install the water pump pulley.ST1 18355AA000PULLEY WRENCHST2 18334AA030PULLEY WRENCH PIN SETTightening torque:14 N&m ...
