COOLING(H4DO) > Water Pump

INSTALLATION

1. WATER PUMP PULLEY

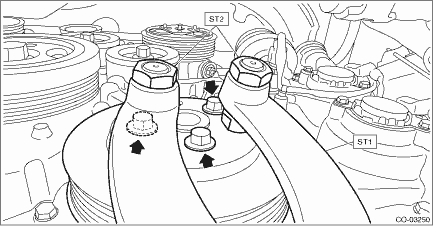

1. Using the ST, install the water pump pulley.

ST1 18355AA000PULLEY WRENCH
ST2 18334AA030PULLEY WRENCH PIN SET

Tightening torque:

14 N·m (1.4 kgf-m, 10.3 ft-lb)

2. Install the under cover. Front Under Cover > INSTALLATION">

3. Lower the vehicle.

4. Install the radiator main fan & fan motor assembly. Radiator Main Fan and Fan Motor > INSTALLATION">

5. Install the V-belts. V-belt > INSTALLATION">

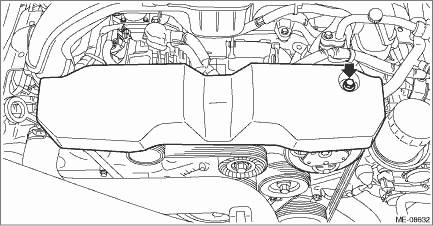

6. Install the V-belt cover.

Tightening torque:

7 N·m (0.7 kgf-m, 9.6 ft-lb)

7. Connect the battery ground terminal. NOTE">

2. WATER PUMP

1. Install the water pump to oil pan upper.

NOTE:

Use a new gasket.

Tightening torque:

6.4 N·m (0.7 kgf-m, 4.7 ft-lb)

2. Install the front exhaust pipe. Front Exhaust Pipe > INSTALLATION">

3. Install the water pump pulley. Water Pump > INSTALLATION">

4. Fill engine coolant. Engine Coolant > REPLACEMENT">
