Subaru Crosstrek Service Manual: Removal

COOLING(H4DO) > Radiator Main Fan and Fan Motor

REMOVAL

1. Disconnect the ground cable from battery. NOTE">

2. Remove the reservoir tank. Reservoir Tank > REMOVAL">

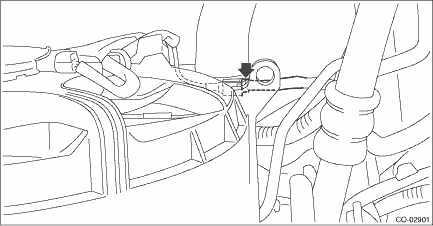

3. Disconnect the connector from the main fan motor assembly.

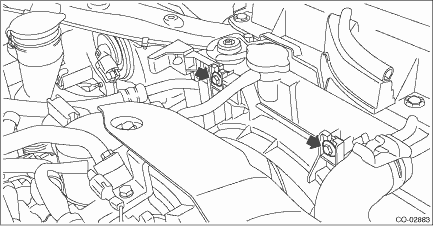

4. Remove the bolts which hold the radiator main fan shroud onto the radiator.

5. Remove the radiator main fan and fan motor from the vehicle.

Assembly
COOLING(H4DO) > Radiator Main Fan and Fan MotorASSEMBLYAssemble in the reverse order of disassembly.Tightening torque:4.41 N·m (0.45 kgf-m, 3.25 ft-lb)Tightening torque:3.4 N·m (0.3 k ...

Disassembly
COOLING(H4DO) > Radiator Main Fan and Fan MotorDISASSEMBLY1. Remove the clip which holds the main fan motor connector onto the radiator main fan shroud.2. Disconnect the radiator main fan from the ...
