Subaru Crosstrek Service Manual: Assembly

Subaru Crosstrek Service Manual / Cooling(h4do) / Radiator main fan and fan motor / Assembly

COOLING(H4DO) > Radiator Main Fan and Fan Motor

ASSEMBLY

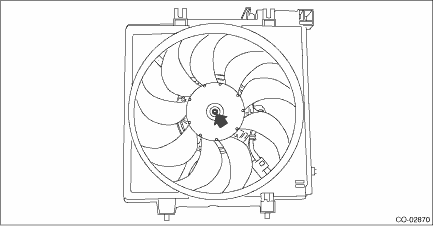

Assemble in the reverse order of disassembly.

Tightening torque:

4.41 N·m (0.45 kgf-m, 3.25 ft-lb)

Tightening torque:

3.4 N·m (0.3 kgf-m, 2.5 ft-lb)

Radiator main fan and fan motor

...

Removal

COOLING(H4DO) > Radiator Main Fan and Fan MotorREMOVAL1. Disconnect the ground cable from battery. NOTE">2. Remove the reservoir tank. Reservoir Tank > REMOVAL">3. Disconnect t ...
