Subaru Crosstrek Service Manual: Removal

CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Transfer Driven Gear

REMOVAL

1. Remove the transmission assembly from the vehicle. Automatic Transmission Assembly > REMOVAL">

2. Remove the extension case. Extension Case > REMOVAL">

3. Remove the transfer clutch assembly. Transfer Clutch > REMOVAL">

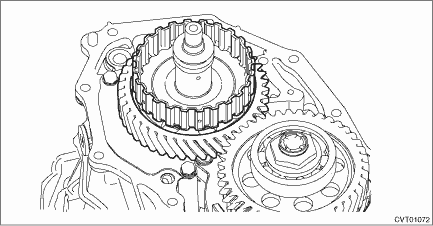

4. Remove the transfer driven gear assembly.

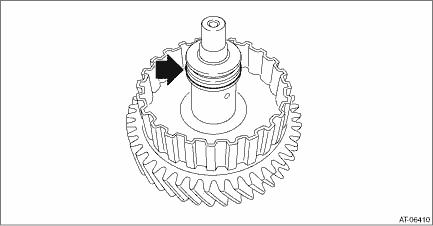

5. Remove the seal ring from the transfer driven gear assembly.

Adjustment
CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Transfer Driven GearADJUSTMENTNOTE:When the transfer driven gear or bearing is replaced, select the transfer driven gear shim. Transfer Clutch > ADJU ...

Assembly
CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Transfer Driven GearASSEMBLY1. Using the ST, install the ball bearing.ST 899580100INSTALLER ...
