Subaru Crosstrek Service Manual: Removal
CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Parking Pawl
REMOVAL
1. Remove the transmission assembly from the vehicle. Automatic Transmission Assembly > REMOVAL">
2. Shift the range select lever to “N” range.
3. Remove the extension case. Extension Case > REMOVAL">

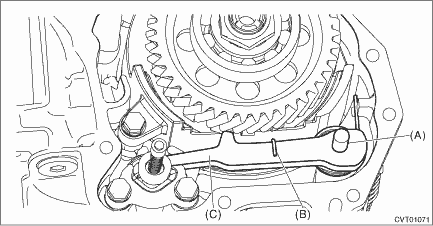

4. Remove the parking pawl shaft, return spring and parking pawl.
(A) | Parking pawl shaft |
(B) | Return spring |
(C) | Parking pawl |
Inspection
CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Parking PawlINSPECTION• Check the parking pawl for breakage or damage.• Check for worn, broken and/or damaged return spring. ...
Installation
CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Parking PawlINSTALLATION1. Set the range select lever to the “N” range.2. Install the parking pawl shaft, return spring and parking pawl.NOTE ...
