Subaru Crosstrek Service Manual: Removal
SEATS > Seat Heater System
REMOVAL
1. SEAT HEATER UNIT
1. Remove the front seats. Front Seat > REMOVAL">
2. Remove the backrest cover of front seat and seat cushion cover. Front Seat > DISASSEMBLY">
3. Remove the seat heater module.
CAUTION:
If the seat heater module is removed, replace the pad assembly with a new part.
2. SEAT HEATER SWITCH
1. Disconnect the ground cable from battery. NOTE">
NOTE:
On CVT models, shift the select lever into “N” before disconnecting the battery ground cable.
2. Remove the console box assembly. Console Box > REMOVAL">
3. Remove the screws and remove the seat heater switch from the backside of the console box assembly.
3. SEAT HEATER RELAY AND FUSE
1. Disconnect the ground cable from battery. NOTE">
2. Remove the cover assembly - instrument panel LWR driver. Instrument Panel Lower Cover > REMOVAL">
3. Remove the glove box assembly. Glove Box > REMOVAL">
4. Remove the seat heater relay and fuse.
(1) Remove the relay & fuse box bolts.
(2) Remove the seat heater relay from the relay holder.

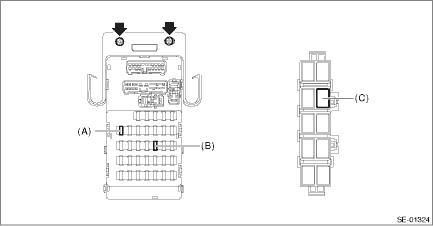

Relay & fuse box | Fuse 7.5 A (remote control mirror) | (A) |
Fuse 15 A (seat heater) | (B) | |
Relay holder | Seat heater relay | (C) |
Inspection
SEATS > Seat Heater SystemINSPECTION1. WIRING DIAGRAMRefer to “Seat Heater System” in the wiring diagram. Seat Heater System > WIRING DIAGRAM">2. DIAGNOSTIC CHARTSymptomsRep ...
Installation
SEATS > Seat Heater SystemINSTALLATIONCAUTION:• If the cover - front cushion is removed, make sure to replace the hang wire on the cover - front cushion side with a new wire.• When repl ...
