Subaru Crosstrek Service Manual: Location

Subaru Crosstrek Service Manual / Vehicle dynamics control (vdc) / Relay and fuse / Location

VEHICLE DYNAMICS CONTROL (VDC) > Relay and Fuse

LOCATION

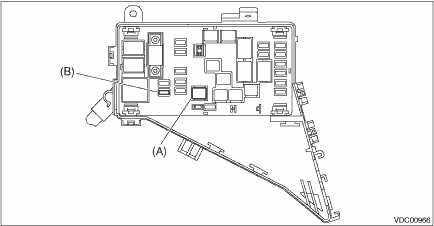

Main fuse box	Fuse 50A (VDC CM&H/U)	(A)
Main fuse box	Fuse 30A (VDC CM&H/U)	(B)

NOTE:

For other related fuses, refer to the wiring diagram. Power Supply Circuit">

Inspection

VEHICLE DYNAMICS CONTROL (VDC) > Relay and FuseINSPECTION1. CHECK FUSE1. Remove the fuse and inspect visually.2. If the fuse is blown out, replace the fuse. ...
