Subaru Crosstrek Service Manual: Location

Subaru Crosstrek Service Manual / Eyesight / Relay and fuse / Location

EyeSight > Relay and Fuse

LOCATION

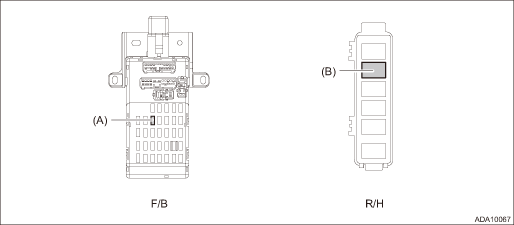

Relay & fuse box	Fuse 10 A (stop light and brake switch, brake light relay)	(A)
Relay holder	Brake light relay	(B)

NOTE:

For other related fuses, refer to the wiring diagram. Power Supply Circuit">

Inspection

EyeSight > Relay and FuseINSPECTION1. CHECK FUSE1. Remove the fuse and inspect visually.2. If the fuse is blown out, replace the fuse.NOTE:If the fuse is blown again, check the system wiring harnes ...
