Subaru Crosstrek Service Manual: Installation
SECURITY AND LOCKS > Keyless Buzzer
INSTALLATION
Install each part in the reverse order of removal.
CAUTION:

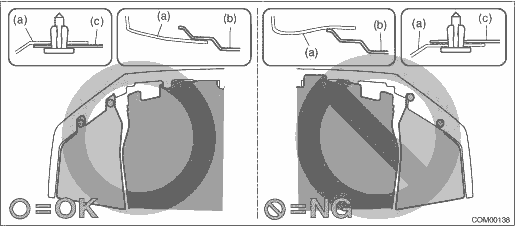

Install so that the front end of the under cover (b) comes inside the bumper face - front (a), and the front end of the mud guard (c) comes outside the bumper face - front (a).
