Subaru Crosstrek Service Manual: Removal
SECURITY AND LOCKS > Keyless Buzzer
REMOVAL
1. Disconnect the ground cable from battery. NOTE">
2. Lift up the vehicle.

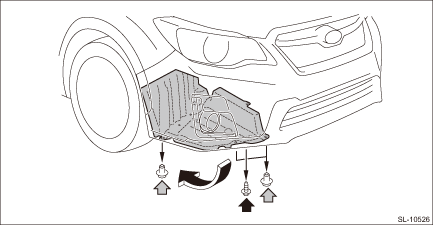

3. Remove the clips and screws, and turn over the front side of the mud guard - front RH.

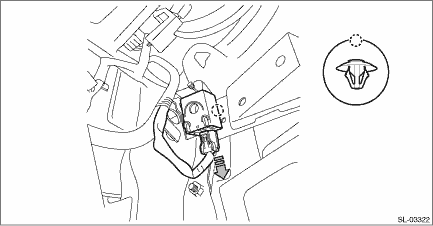

4. Remove the keyless buzzer.
(1) Disconnect the connector.
(2) Remove the clip and detach the keyless buzzer.
Inspection
SECURITY AND LOCKS > Keyless BuzzerINSPECTIONUsing the Subaru Select Monitor, perform forced operation of the keyless buzzer. User Customizing > OPERATION">If the buzzer does not sound, ...
Installation
SECURITY AND LOCKS > Keyless BuzzerINSTALLATIONInstall each part in the reverse order of removal.CAUTION:Install so that the front end of the under cover (b) comes inside the bumper face - front (a ...
