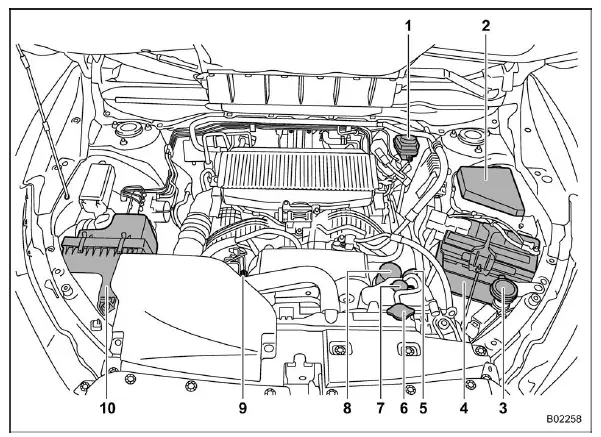

Subaru Ascent 2018-2026 Owner's Manual: Engine compartment overview
- Brake fluid reservoir
- Fuse box
- Windshield washer tank
- Battery
- Engine oil filler cap
- Radiator cap
- Engine coolant reservoir
- Engine oil filter
- Engine oil level gauge
- Air cleaner case
The engine compartment of your Subaru Ascent is carefully organized to allow easy access to essential service points and inspection areas. Familiarizing yourself with the location of these components will simplify routine maintenance tasks and help you quickly identify critical systems.
Regular inspection of key elements such as fluid reservoirs, battery condition, and air intake components will contribute to the long-term reliability and performance of your Subaru Ascent. Maintaining awareness of these areas ensures that your vehicle continues to operate efficiently and safely in all driving conditions.
