Subaru Crosstrek Service Manual: Electrical component location Location
OCCUPANT DETECTION SYSTEM (DIAGNOSTICS) > Electrical Component Location
LOCATION

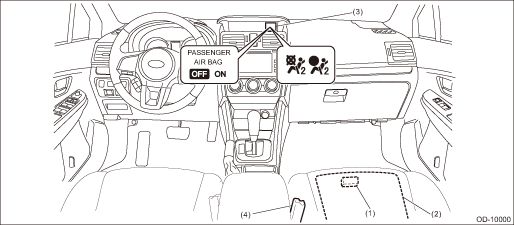

(1) | Occupant detection control module | (3) | Airbag ON/OFF indicator light | (4) | Buckle switch (passenger’s seat) |
(2) | Occupant detection sensor |
Clear memory mode Operation
OCCUPANT DETECTION SYSTEM (DIAGNOSTICS) > Clear Memory ModeOPERATIONAfter repairing the occupant detection system, clear the DTCs stored in the airbag control module and the occupant detection cont ...
Inspection mode Procedure
OCCUPANT DETECTION SYSTEM (DIAGNOSTICS) > Inspection ModePROCEDURERecreate the circumstance by referring to the conditions described in the checklist. ...
