EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)(H4DO) > Leak Check Valve Assembly

DISASSEMBLY

1. Remove the drain separator from the leak check valve assembly. Drain Separator > REMOVAL">

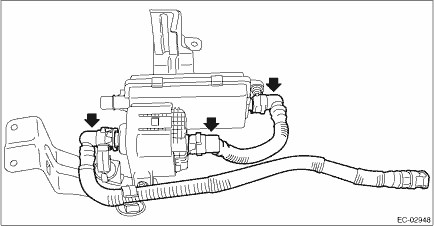

2. Disconnect the drain tube from the leak check valve assembly.

NOTE:

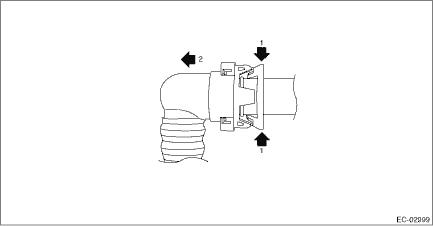

Disconnect the quick connector as shown in the figure.

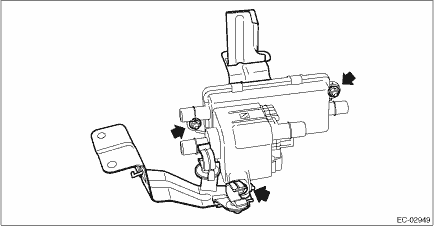

3. Remove the bracket from the leak check valve assembly.
