Subaru Ascent 2018-2026 Owner's Manual: Conditions in which front passenger's SRS frontal airbag is activated

The Subaru Ascent is equipped with an intelligent SRS frontal airbag system that activates based on real-time analysis of the front passenger seat conditions. The front passenger's SRS frontal airbag is designed to deploy during an impact when specific criteria are met, ensuring optimal safety for occupants.

In the Subaru Ascent, the front passenger airbag system will typically activate under the following conditions:

• When the front passenger seat is occupied by an adult with proper seating posture.
• When certain objects with sufficient weight (for example, a filled water container) are placed on the seat, triggering the occupant detection system.

CAUTION

When an adult is seated in the front passenger seat of the Subaru Ascent, it is essential to follow these precautions carefully.

This improper detection may increase the risk of injury in the event of a collision.

• Do not allow rear passengers to push upward on the front passenger seat cushion using their feet.
• Do not place any objects underneath the front passenger seat or force items into the space beneath it, as this may lift the seat cushion and affect sensor readings.
• Avoid wedging items between the front passenger seat and surrounding interior structures such as the door, pillar, or center console, as this can alter seat positioning and sensor accuracy.

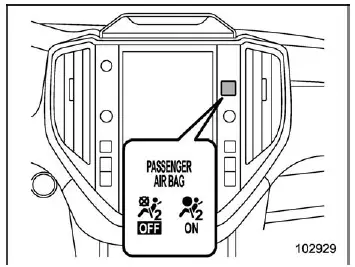

If the passenger's frontal airbag OFF indicator light illuminates and the ON indicator light turns off even when the front passenger's seat is occupied by an adult

Front passenger's frontal airbag ON indicator light

Front passenger's frontal airbag OFF indicator light

This condition in the Subaru Ascent may occur if the front passenger is not seated correctly or if the occupant detection system is affected by external factors.

To restore proper operation, follow these steps:

1. Turn the ignition switch to the "LOCK"/"OFF" position.

2. Ask the front passenger to sit upright in the center of the seat, adjust the seatback to a vertical position, fasten the seatbelt properly, extend legs forward, and move the seat to the rearmost position.

3. Turn the ignition switch to the "ON" position.

If the issue persists in the Subaru Ascent, perform the following additional checks:

1. Turn the ignition switch to the "LOCK"/"OFF" position again.

2. Ensure the passenger is not using additional items such as blankets, cushions, seat covers, heaters, or massage devices.

3. Remove excessive clothing layers if necessary, as they may affect sensor readings, or consider seating the passenger in the rear seat.

4. Turn the ignition switch to the "ON" position and allow approximately 6 seconds for the system self-check.

During the self-check, both indicators will turn off briefly. Afterward, the ON indicator should illuminate while the OFF indicator remains off.

If the OFF indicator still remains illuminated, relocate the passenger to the rear seat and immediately contact a SUBARU dealer for inspection of the Subaru Ascent safety system.

Operation

1. Driver's side
2. Passenger's side

1. SRS airbags in the Subaru Ascent deploy instantly upon detecting a qualifying collision.
2. Immediately after deployment, the airbags begin to deflate to maintain visibility and allow continued driver control.

The Subaru Ascent SRS airbag system operates only when the ignition switch is in the "ON" position.

This advanced system continuously evaluates occupant characteristics and seating conditions through sensors, allowing it to activate either only the driver's airbag or both driver and passenger airbags depending on the situation. This selective deployment is a normal function and not a system malfunction.

When the Subaru Ascent detects sufficient impact force via its front impact sensors and control module sensors, signals are sent to the appropriate airbag modules to initiate deployment.

• Front impact sensors
• Integrated impact sensors within the airbag control module

Additionally, the driver's SRS knee airbag deploys simultaneously with the frontal airbag to enhance lower body protection.

The Subaru Ascent utilizes dual-stage inflators for both driver and passenger airbags, allowing for either sequential or simultaneous activation depending on crash severity and occupant conditions.

After deployment

After deployment, Subaru Ascent airbags deflate almost instantly—faster than the blink of an eye—to ensure that the driver's visibility remains unobstructed and vehicle control is maintained.

Regardless of whether only the driver airbag deploys or both front airbags deploy, the seatbelt pretensioners activate simultaneously to provide additional restraint.

During deployment, a loud noise and the release of a small amount of smoke may occur. This is a normal part of the Subaru Ascent airbag system operation and does not indicate a fire.

CAUTION

Do not touch any SRS airbag components near the steering wheel, dashboard, or deployment zones immediately after activation. These components may become extremely hot and can cause burns.

Understanding how the Subaru Ascent SRS airbag system operates and maintaining proper seating conditions significantly enhances occupant safety and ensures that the system functions correctly in critical situations.
