COOLING(H4DO) > Radiator Sub Fan and Fan Motor

DISASSEMBLY

1. Remove the clip which holds the sub fan motor connector onto the radiator sub fan shroud.

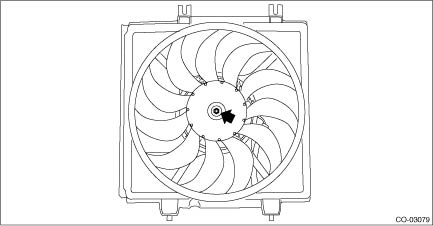

2. Disconnect the radiator sub fan from the sub fan motor.

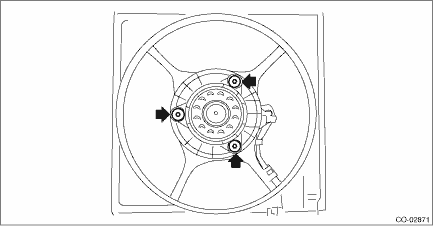

3. Disconnect the sub fan motor from the radiator sub fan shroud.
