Control screen (main screen and station screen)
A phone number is distributed depending on content items.
This feature is available only in these cases.

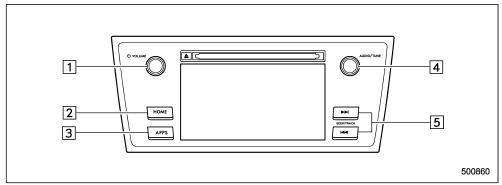

Audio panel
Press to turn the audio system on/off.
Press to select an audio mode.
Press to select an audio source. Refer to "Selecting an audio source"
NOTE
For safety reasons, certain functions are not available while your vehicle is in motion.
In order to maximize signal reception, performance and precision of the smartphone, please ensure the smartphone is placed as close to the system as possible, while ensuring it is stowed and secure while driving.
When the ignition switch is in the "ACC" or "ON" position, the battery of the connected iPhone/iPod touch is charged.
iPhone/iPod touch may not be recognized when the ignition switch is in the "ACC" or "ON" position. In this case, remove the iPhone/iPod touch and reconnect it.
The accuracy of the displayed information or the signal reception performance depends on the smartphone or the connected device, and it's wireless connection.
Since the aha application uses signals from GPS satellites and wireless communication lines, it may not work properly in the following locations.
In a tunnel
In underground parking lots
Outside wireless communication range, such as some countryside areas
Where the wireless communication network is congested, or where communications are restricted
Depending on the circumstances and environment, the signal may be weak or not be received. In such cases, an error may occur.
Top 35 entries in the preset station list on the smartphone are displayed.
When there are more than 35 entries in the preset station list, change the order of the entries in the list on the smartphone.
You can change the priority of your preset stations within the aha application (after disconnected from this system) to modify the station list shown on the screen. Please see your smartphone aha application "Edit Presets (in Main menu)" to modify this list.
For operating the smartphone, see the instruction manual that comes with it.
If there are multiple music files stored on your iPhone or iPod touch, it may take some time until playback starts.
Playback may be intermittent when you switch to streaming Bluetooth audio from aha on your smartphone device.
When connecting the device via Bluetooth, the communication speed may become slower than via USB.
