Subaru Crosstrek Service Manual: Airbag system Wiring diagram

Subaru Crosstrek Service Manual / Wiring system / Airbag system Wiring diagram

WIRING SYSTEM > Airbag System

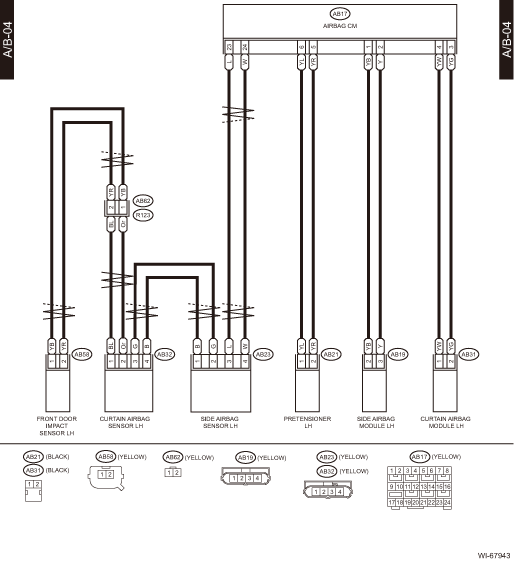

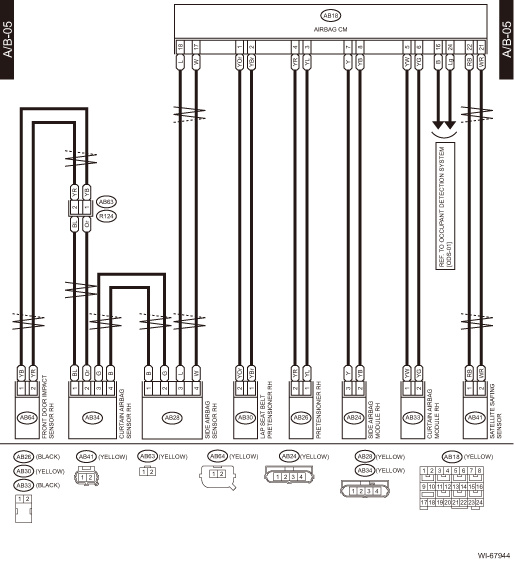

WIRING DIAGRAM

Air conditioning system Wiring diagram
WIRING SYSTEM > Air Conditioning SystemWIRING DIAGRAM1. MANUAL A/C MODEL2. AUTO A/C MODEL ...

Antenna cord Location
WIRING SYSTEM > Antenna CordLOCATION1. WITHOUT TELEMATICSConnectorConnecting toNo.PoleColorAreaNo.DescriptionAN13B-2 Audio3B-2 Navigation unitAN21B-2 Audio1B-2 Navigation unitAN31B-2AN4Antenna cord ...

Other materials:

On-road and off-road driving
WARNING Always adapt your driving speed in the Subaru Ascent to match current road, traffic, and weather conditions. Excessive speed during cornering, braking, or sudden maneuvers can significantly increase the risk of accidents. Even though the Subaru Ascent is equipped with an advanced ...

Disassembly
CLUTCH SYSTEM > Clutch PedalDISASSEMBLY1. Remove the clutch switches.2. Remove the clip, assist spring, rod and bushing.(A)Clip(B)Assist spring(C)Assist rod(D)Bushing(E)Clevis pin3. Remove the spring pin and lever.(A)Spring pin(B)Lever4. Remove the clutch pedal and pedal bushings.(A)Clutch pedal( ...

Dtc p2135 throttle/pedal position sensor/switch "a"/"b" voltage correlation
ENGINE (DIAGNOSTICS)(H4DO) > Diagnostic Procedure with Diagnostic Trouble Code (DTC)DTC P2135 THROTTLE/PEDAL POSITION SENSOR/SWITCH "A"/"B" VOLTAGE CORRELATIONDTC detecting condition:Immediately at fault recognitionTrouble symptom:• Improper idling• Poor driving pe ...
