SECURITY AND LOCKS > Ignition Key Lock

REPLACEMENT

CAUTION:

• Before handling the airbag system components, refer to “CAUTION” of “General Description” in “AIRBAG SYSTEM”. General Description > CAUTION">

• If the steering wheel and steering angle sensor (steering roll connector) are removed, perform “VSC(VDC) Centering Mode” of the VDC. VDC Control Module and Hydraulic Control Unit (VDCCM&H/U) > ADJUSTMENT">

1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. NOTE">

2. Remove the cover assembly - instrument panel LWR driver. Knee Airbag Module > REMOVAL">

3. Remove the knee airbag module. Knee Airbag Module > REMOVAL">

4. Remove the column assembly - steering. Steering Column > REMOVAL">

5. Remove the ignition key lock.

(1) Secure the column assembly - steering in a vise.

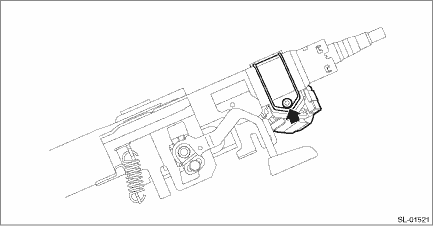

(2) Use the reverse tap and drill to remove the set bolt and remove the ignition key lock.

CAUTION:

Do not apply any impact to the set bolt by a chisel or punch.

6. Install the ignition key lock.

(1) Secure the ignition key lock to the column assembly - steering.

(2) Use new set bolts. Tighten the bolt until the bolt head is broken (bolt head wrenched off).
