Subaru Crosstrek Service Manual: Inspection
SECURITY AND LOCKS > Ignition Key Lock
INSPECTION
Preparation tool:
Circuit tester
1. Check the resistance between switch terminals.

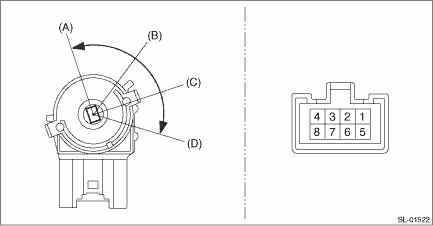

Terminal No. | Inspection conditions | Standard | |
Between all terminals | (A) | LOCK | 1 M? or more |
2 — 4 | (B) | ACC | Less than 1 ? |
1 — 2 — 4 5 — 6 | (C) | ON | Less than 1 ? |
1 — 3 — 4 5 — 6 — 7 | (D) | ST | Less than 1 ? |
2. Replace the ignition switch assembly if the inspection result is not within the standard.
Replacement
