Subaru Crosstrek Service Manual / Wiper and washer systems / Front wiper motor and link / Removal

WIPER AND WASHER SYSTEMS > Front Wiper Motor and Link

REMOVAL

1. Disconnect the ground cable from battery. NOTE">

2. Remove the arm assembly - windshield wiper. Front Wiper Arm > REMOVAL">

3. Remove the cowl panel assembly. Cowl Panel > REMOVAL">

CAUTION:

Before removing the cowl panel, use an air blower and nylon brush to sweep gravel from the lower area of the front side of the glass.

4. Remove the link assembly - windshield wiper.

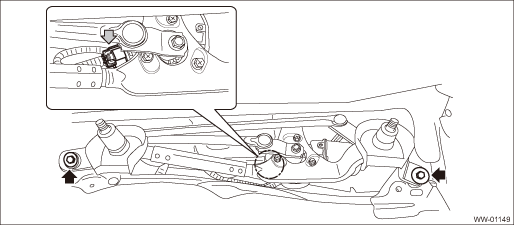

(1) Disconnect the connector of the motor assembly - windshield wiper.

(2) Remove the bolts and harness clips, and remove the link assembly - windshield wiper.

5. Remove the motor assembly - windshield wiper.

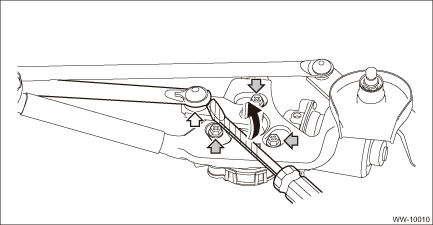

(1) Using a crowbar wrapped with protective tape, disconnect the link assembly - windshield wiper from the link plate.

(2) Remove the bolts, and remove the motor assembly - windshield wiper.

Inspection

WIPER AND WASHER SYSTEMS > Front Wiper Motor and LinkINSPECTION1. Check that the following operations perform normally.CAUTION:Fix the motor to prevent the motor from being shorted by moving during ...

Installation

WIPER AND WASHER SYSTEMS > Front Wiper Motor and LinkINSTALLATIONCAUTION:• If the cowl panel assembly cannot be installed properly, do not hit or set it forcibly. The claws of the cowl panel ...
